Description

About Canadian solar

Candian solar is committed to providing high quality solar photovoltaic modules, solar energy and battery storage solutions to customers. The company was recognized as the No. 1 module supplier for quality and performance/price ratio in the IHS Module Customer Insight Survey. Over the past 20 years, it has successfully delivered over 70 GW of premium-quality solar modules across the world.

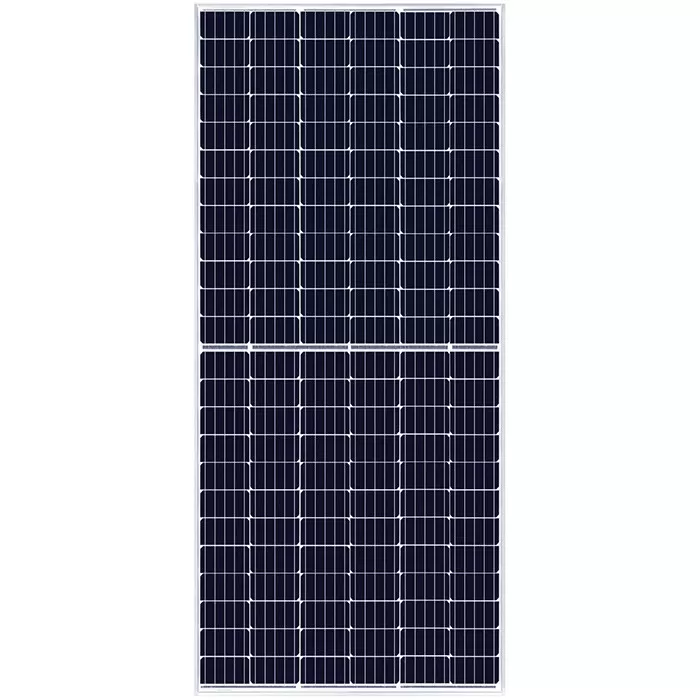

MECHANICAL DATA

Specification       Data

Cell Type: Monocrystalline
Cell Arrangement: 132 [2 x (11 x 6) ]
Dimensions: 2384 ˣ 1303 ˣ 35 mm (93.9 ˣ 51.3 ˣ 1.38 in)
Weight: 34.4 kg (75.8 lbs)
Front Cover: 3.2 mm tempered glass with antireflective coating
Frame: Anodized aluminium alloy
J-Box: IP68, 3 bypass diodes
Cable: 4 mm2 (IEC), 12 AWG (UL)
Connector: T6 or T4 series or MC4-EVO2
Cable Length (Including Connector): 460 mm (18.1 in) (+) / 340 mm (13.4 in) (-) or customized length*
Per Pallet: 31 pieces
Per Container: (40′ HQ) 527 pieces
